Encountering the OS port limit

not understanding how tcp connections work

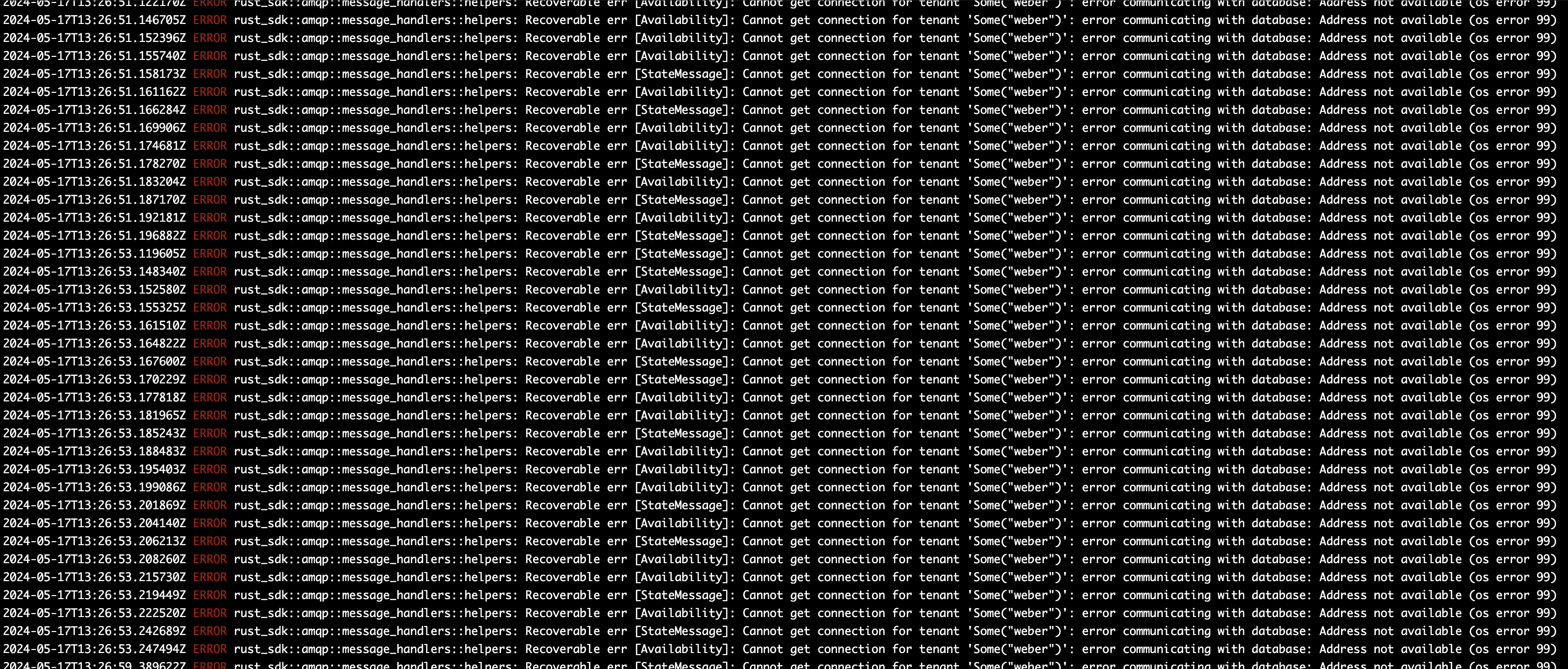

Recently I ran into a very strange issue: "error communicating with database: address not available (os error 99)".

This issue leads me down a rabbit whole of optimizing our PostgresSQL instance, our PGBouncer, and configurations just to understand that this issue was not related to any of that.

But let me explain how we got here.

what we are building

We are building an SaaS-based product for machine vendors to gather, analyze, visualize, and report data for how much meat and cheese got produced in one day. We do this by collecting various data points from the machines that are in the field. Machines that cut meat and cheese, machines that seal, machines that pack those slices into packages or scales that weigh how much actually got into that package.

One of the big issues you face when building such an application is the amount of data that can be produced by all those lines and machines. Millions of data points every day.

And we were not ready.

our previous architecture

For two years we ran our application stack for each tenant in its own silo stack.

Our application stack looked basically like this:

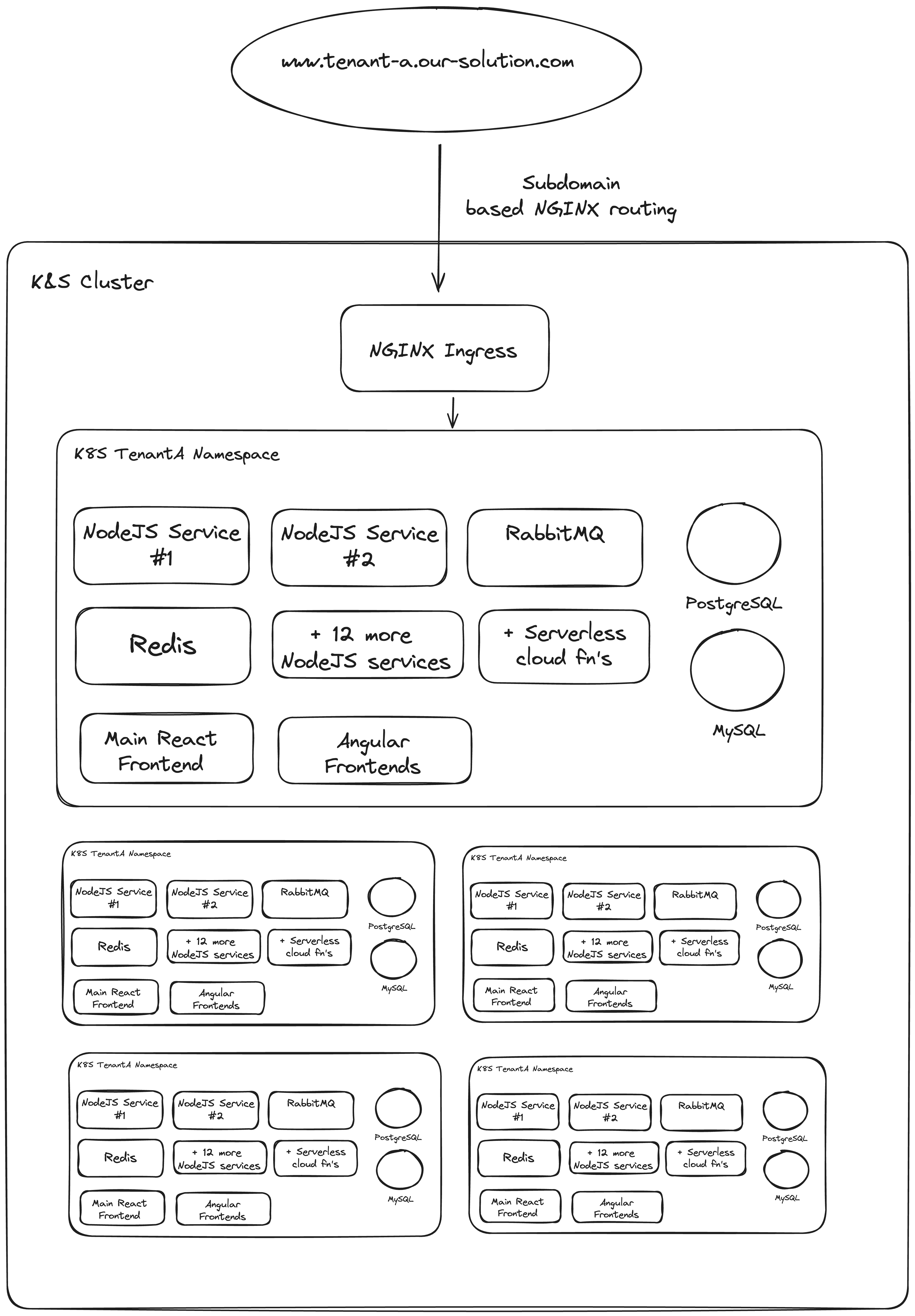

A diagram of our infrastructure before migrating it to a simpler stack.

This structure came with a few amenities:

Each tenant was completely segregated from all other tenants and did not influence other tenants' resources
Each tenant could be updated individually easily, whilst others could remain on an older version of the product (which sometimes was really handy)
Assigning a tenant service more resources (CPU, RAM, storage) was just a quick edit of the tenant-specific K8S deployment
Debugging issues was a little bit easier than with our new architecture

But there were downsides:

Doing analytics throughout multiple tenants became a pain since everything was completely segregated
Each tenant required a full application-stack deployment, which always required a significant idle load on the K8S cluster, even if there was no load
Updating a tenant was very cumbersome, and we needed other processes to fix this cumbersomeness
Hitting the pod limits of our K8S cluster at some point, since every tenant got quite a few pods going

For those and more reasons we decided to migrate our infrastructure and application stack, step by step. We decided to move from a purely silo-based stack, to a pool based stack, with some parts of the silo data-residency still kept.

So we decided to move on.

our architecture now

Now our simplified architecture looks like this:

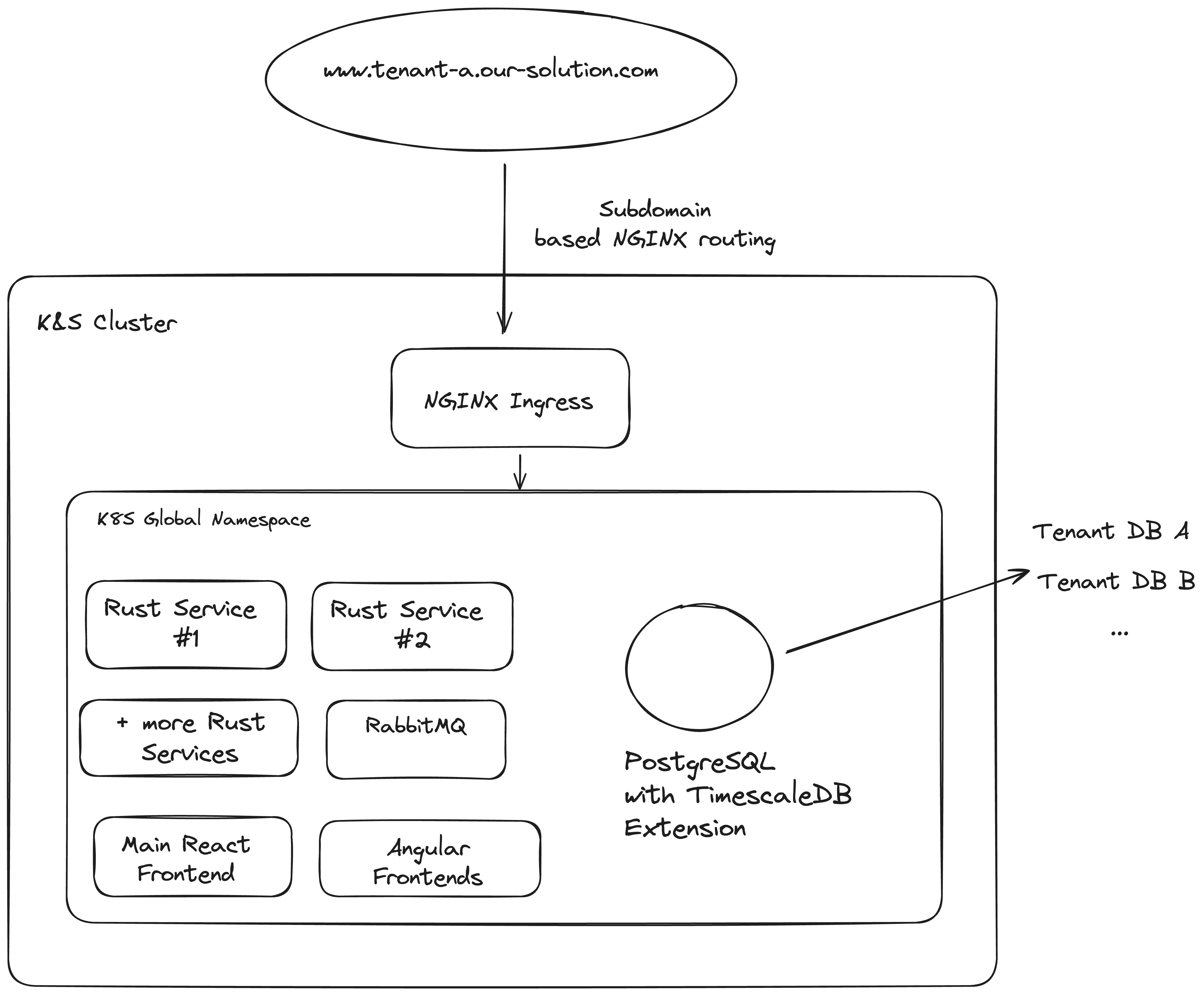

A diagram of our infrastructure after migrating to the new K8S architecture.

Now we have a dedicated Rust service for each domain that is listening to global events and emitting new ones. This forms our event-driven architecture. To this date, I do not fully agree with this architecture, but it has been a team decision, so I can only argue so much.

Note: I personally still find this setup way too complex, a simpler approach would also work, require fewer resources, and be easier to maintain.

During our migration process we have chosen Rust as our new backend language since we were done with all the issues we had with our previous Node.js implementation. We ran into memory issues with the garbage collector. Performance issues of the language itself, problems with the number of dependencies we had to manage, and the amount of time we had to spend on debugging issues that were related to the language itself.

Rust has so far been a fantastic choice. It is superfast, has an amazing type system, and for our needs it has been a perfect fit since we already use it for our edge computing devices. Most of the performance improvements we see now could have been achieved with Node.js as well, since most of the problems were related to SQL queries, and not the language itself.

Since we now did the second implementation of our application stack, we decided to also move from a monolithic database to a database per service, per tenant.

Personal note here: I would have preferred to have a single database, with a single schema, and a single service that would handle all the tenants. This would have made the application stack way simpler, and would have reduced the cognitive load whilst developing a lot.

We reached a point where we wanted to test our new architecture and see how it performs under load.

the first load test of our new architecture

Since we needed to migrate the old customer data inside their own stack into our global tenant stack, we had to create a few migration scripts. Those scripts basically took the existing data, did some transformations, and sent the new values as a new input message into our RMQ system. With that we could simulate going through all the new architecture and testing every single piece of the new service stack. And see its limitations.

We dumped one of our tenant data into the testing stack. Got a few millions of messages waiting to be processed and started the service stack. Everything seemed to be working great! Hooray, success! Thousands and thousands of messages got processed every second, the load of our PostgresSQL server went up, whilst the data was flowing in. But only for the first 20 seconds.

At that point our services started to run into an eccentric loop. The acknowledgement of messages went down drastically, messages got redelivered faster than light. We decided to simply restart the stack. But it happened again. The same thing. Our first impression of this was related to our PostgresSQL server, that might not be well configured. Maybe it was not able to provide enough database connections? Or because the server was too CPU-bound? So we started to optimize the database server. Fiddled with the configurations, optimized workers, and tried several things. All without any success. Then we thought: Ok, maybe it was the PGBouncer that does the connection pooling and might simply reject the connection requests? Since so many were happening concurrently. So we optimized its configuration. Fiddled with all the parameters, trying to get the most performance for our use case out of it. We even tried PGCat another Connection-Pooler. Still no success. The error was still occurring after about 20 seconds.

After some googling, we came to a Serverfault issue referring to this issue being a problem with the OS itself. The OS was not able to handle the number of connections that were being opened and closed. How is that even possible? Were we not closing the database connections correctly? We investigated that, but that was not the issue either.

So we decided to actually look at the OS itself. Restarted our testing, connected to a pod shell, ran netstat and saw that we had about 30.000 connections in the TIME_WAIT state. But what does that mean?

So apparently all those tcp connections were actually closed, since they were in the TIME_WAIT state, but through this Serverfault post, we learned that:

The OS actually keeps those ports blocked for a little longer to ensure that a new connection on that port does not receive packets that got not delivered in time to the old connection. This got me down the rabit hole of understanding how TCP connections work and how the operating system handles them.

I link to two of the most helpful resources I found here:

So did we solve our issue with the options at hand?

solving the issue

We had three options to solve this issue:

We are using SQLX as our executor for PostgresSQL queries. SQLX has a builtin for pooling that runs inside the application code. With that we would only open like 40–100 connections or however many we wanted to use. This would not open too many short-lived TCP connections but comes with the drawback of having to manage a pool for each of our tenants within the service code. Which would also come with the drawback that if we scaled the service horizontally, we would have to manage the pool across all instances.
We could simply reduce the lifetime of tcp connections after they have been closed. This can be done when building the Docker image by simply lowering the threshold. But since this threshold is there for a reason, we decided to go with the next option.
Use more quadruplets for the connections. Instead of having our PGBouncer listening on one port, we could have it listen on multiple ports. This would allow us to have way more connections, and the implementation turned out to be basic.

async fn get_tenant_connection(tenant: String) -> Result<PgConnection> {
  let mut connection_url = database_config_info.database_url.clone();
  let mut additional_ports = self.additional_bouncer_ports.as_ref().map(|a| a.iter());

  loop {
      let connection = connection_url.get_connection();

      if let Ok(connection) = connection.await {
          return Ok(AutoClosedConnection::new(connection));
      }

      if let Some(Some(next_port)) = additional_ports.as_mut().map(|i| i.next()) {
          tracing::debug!("Failed to connect to database on port, retrying with the next port: {next_port})");
          connection_url = connection_url.replace_port(*next_port).map_err(|e| {
              DatabaseConfigError::Recoverable {
                  tenant: Some(tenant.to_owned()),
                  err: e,
              }
          })?;
      } else {
          break;
      }
  }

  Err(DatabaseConfigError::Recoverable {
      tenant: Some(tenant.to_owned()),
      err: anyhow!("Failed to connect to database"),
  })
}

conclusion

We learned a lot about how the OS handles TCP connections and how we can optimize our services to handle more connections. We also learned that the OS has a limit on how many connections it can handle, and that we can work around this limit by simply using more ports for the connections.

Is this solution perfect? No. But it does work for now, and with the option to always add a few more ports, we should never run into that problem ever again. The memory used for those TIME_WAIT connections is minimal, and the connections are closed after 60 seconds.
